Suitable for machine of type EXPERTCUT 106 LE



3/2 DISTRIBUTOR
4CB01301
4CB01301 - 3/2 DISTRIBUTOR
SUCKER WASHER
4CB01509
4CB01509 - SUCKER WASHER
D 42 / 15 X 1 MM
FIXING BAR 725 MM
4CB02618
4CB02618 - FIXING BAR 725 MM
FIXING BAR 1110 MM
4CB02626
4CB02626 - FIXING BAR 1110 MM
TELESCOPIC BAR 292 - 421 MM
4CB02632
4CB02632 - TELESCOPIC BAR 292 - 421 MM
TELESCOPIC BAR 447 - 731MM
4CB02634
4CB02634 - TELESCOPIC BAR 447 - 731MM
TELESCOPIC BAR 588 - 913MM
4CB02635
4CB02635 - TELESCOPIC BAR 588 - 913MM
BRUSH WITH BRASS BRISTLES
4CB02640
4CB02640 - BRUSH WITH BRASS BRISTLES
45 X 25 X 15 MM | 18 MM
CHAIN SET GRIPPER BAR (14PCS)
4CB02650
4CB02650 - CHAIN SET GRIPPER BAR (14PCS)
We recommend replacing the chain pins when replacing this chain set: 28 x 4CB03119
GRIPPER, STATIONARY
4CB02779
4CB02779 - GRIPPER, STATIONARY
LOWER STRIPPING FRAME
4CB02838
4CB02838 - LOWER STRIPPING FRAME
Incl. Stripping bar 1109 MM + 2 Clamps
STRIPPING PIN 15/4 MM (20X)
4CB02855
4CB02855 - STRIPPING PIN 15/4 MM (20X)
Aluminium alternative is 4CB07482
STRIPPING PIN D 11 / 4 MM
4CB02857
4CB02857 - STRIPPING PIN D 11 / 4 MM
Aluminium alternative is 4CB07483
PIN HOLDER 5 HOLES (10X)
4CB02870
4CB02870 - PIN HOLDER 5 HOLES (10X)
PIN HOLDER 3 HOLES (10X)
4CB02871
4CB02871 - PIN HOLDER 3 HOLES (10X)
COMPRESSION SPRING
4CB03110
4CB03110 - COMPRESSION SPRING
D=1. 9 DM= 15 L= 17 MM
GRIPPER, MOVABLE
4CB03115
4CB03115 - GRIPPER, MOVABLE
BUSHING
4CB03118
4CB03118 - BUSHING
15. 1 / 17. 1 X 39 MM
SPRAG CLUTCH
4CB03176
4CB03176 - SPRAG CLUTCH
BRUSH
4CB03195
4CB03195 - BRUSH
L = 540 MM
PRESSURE ROLLER
4CB03315
4CB03315 - PRESSURE ROLLER
ANGULAR GEAR
4CB03337
4CB03337 - ANGULAR GEAR
Z 20 / D 8 MM
THIN CUTTING PLATES
4CB03828
4CB03828 - THIN CUTTING PLATES
Minimum order qty 20 pcs.
18 HRC
THIN CUTTING PLATES
4CB03894
4CB03894 - THIN CUTTING PLATES
35 HRC
Minimum order qty 20 pcs.
THIN CUTTING PLATE TOP HARD
4CB03922
4CB03922 - THIN CUTTING PLATE TOP HARD
50 HRC
BUSHING (GLISSA)
4CB04219
4CB04219 - BUSHING (GLISSA)
12 / 8.25 X 18 MM
SPRING (COMPRESSION)
4CB04822
4CB04822 - SPRING (COMPRESSION)
DM 7.7 / 1 X 27 MM
POWER FLO (AXLE)
4CB05076
4CB05076 - POWER FLO (AXLE)
SUPPORTING PLATE (DIECUTTING)
4CB05086
4CB05086 - SUPPORTING PLATE (DIECUTTING)
GRIPPER BAR
4CB05088
4CB05088 - GRIPPER BAR
Spant. Exp cut 106 LE/PE up to S/N 38 ALU
GRIPPER BAR
4CB06599
4CB06599 - GRIPPER BAR
Spant. Exp cut 106 LE/PE starting from S/N 38 ALU
PALLET
4CB06616
4CB06616 - PALLET
1061 X 760 X 173 MM
SUCTION CUP
4CB06645
4CB06645 - SUCTION CUP
Transport cup, 78mm height
SUCTION CUP
4CB06646
4CB06646 - SUCTION CUP
Lifting cup, 67,7mm height
STRIPPING PIN ALU 15/4 MM
4CB07482
4CB07482 - STRIPPING PIN ALU 15/4 MM
STRIPPING PIN ALU 10/4 MM
4CB07483
4CB07483 - STRIPPING PIN ALU 10/4 MM
Steel version is 4CB58662
SPROCKET WHEEL O.S.
4CB07548
4CB07548 - SPROCKET WHEEL O.S.
SPROCKET WHEEL O.O.S.
4CB07549
4CB07549 - SPROCKET WHEEL O.O.S.
CUBE III LCD
4CB07564
4CB07564 - CUBE III LCD
CUBE III TOUCHSCREEN
4CB07565
4CB07565 - CUBE III TOUCHSCREEN
GRIPPER COUNTERPLATE
4CB07573
4CB07573 - GRIPPER COUNTERPLATE
MICROMETRIC ADJUSTMENT OS
4CB07617
4CB07617 - MICROMETRIC ADJUSTMENT OS
MICROMETRIC ADJUSTMENT OOS
4CB07620
4CB07620 - MICROMETRIC ADJUSTMENT OOS
GRIPPER
4CB07642
4CB07642 - GRIPPER
FASTENER OS
4CB07694
4CB07694 - FASTENER OS
SPRING
4CB07705
4CB07705 - SPRING
CLAMP
4CB07707
4CB07707 - CLAMP
COMPRESSION SPRING
4CB07743
4CB07743 - COMPRESSION SPRING
D=0. 8 DM= 20 L= 50 MM
SPRING
4CB07852
4CB07852 - SPRING
CHASE CHANGER
4CB08041
4CB08041 - CHASE CHANGER
CHASE CHANGER ELEVATION
4CB08042
4CB08042 - CHASE CHANGER ELEVATION
RAIL
4CB18526
4CB18526 - RAIL
RING
4CB18533
4CB18533 - RING
DRUM
4CB18537
4CB18537 - DRUM

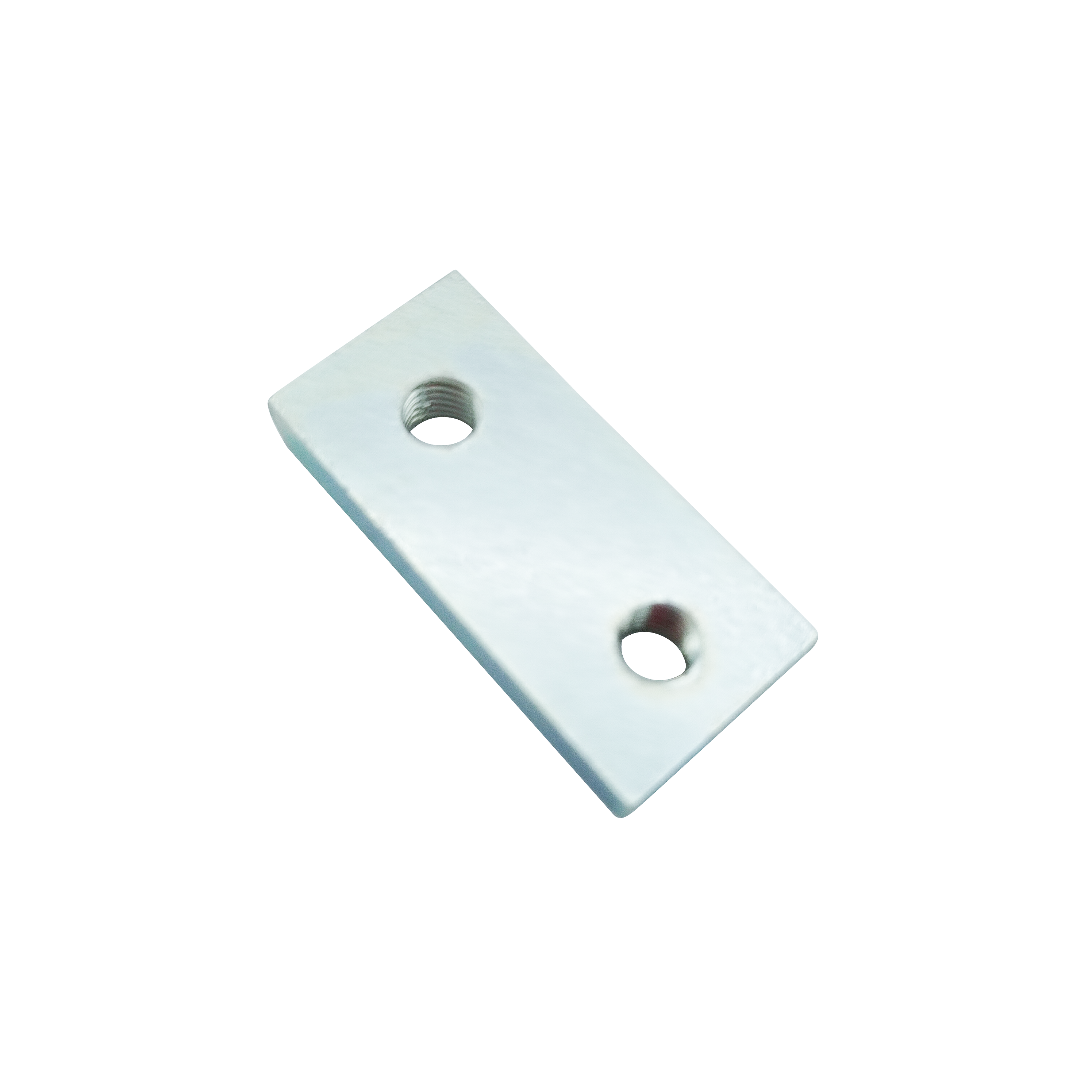

SMALL PLATE
4CB18685
4CB18685 - SMALL PLATE
GUIDE
4CB19300
4CB19300 - GUIDE
COVER
4CB20227
4CB20227 - COVER
FLAT SPRING
4CB25979
4CB25979 - FLAT SPRING
GRIPPER BAR
4CB359023
4CB359023 - GRIPPER BAR
Difference with 4CB05088: contact us

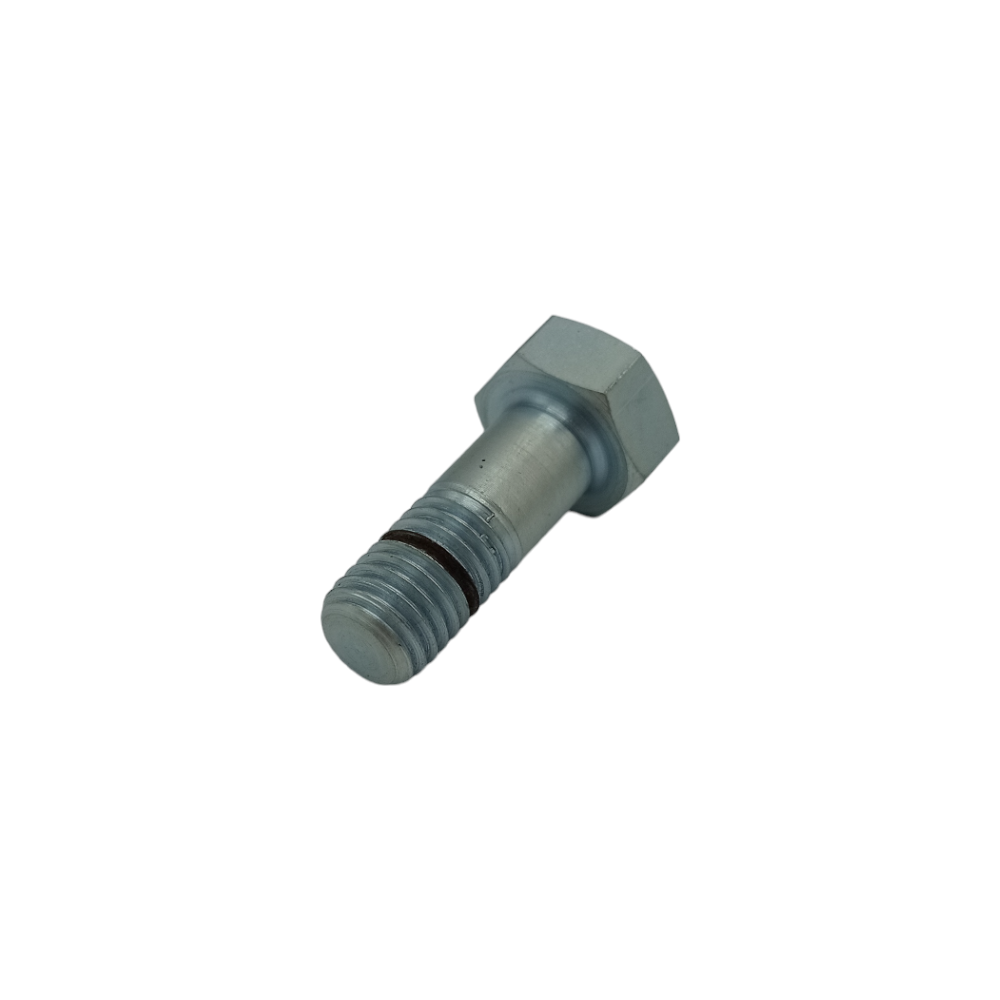

SCREW
4CB47927
4CB47927 - SCREW

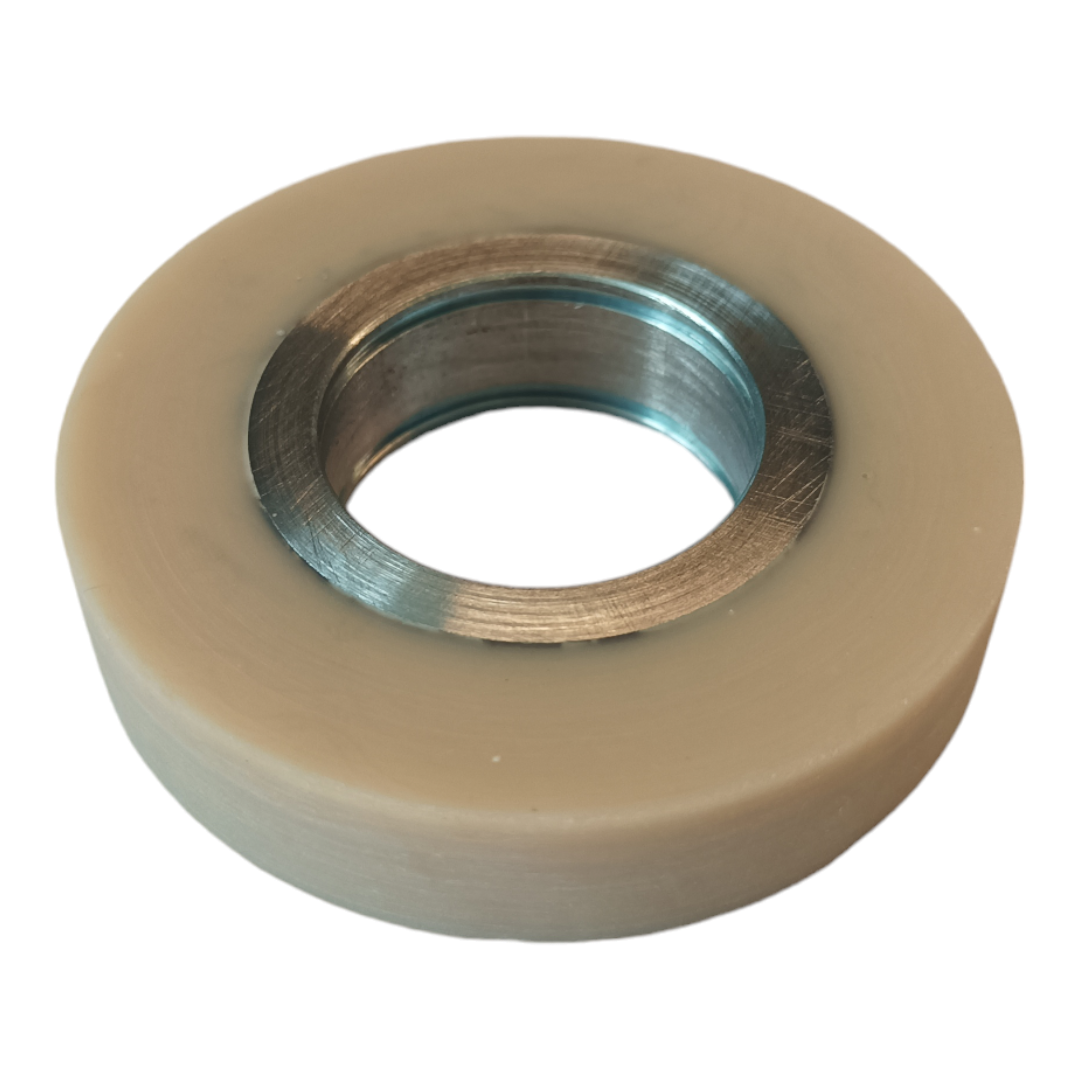

ROLLER
4CB52148
4CB52148 - ROLLER
D 65 / d 30 / H 14.15 MM
RING
4CB55918
4CB55918 - RING
OIL SEAL
4CB56173
4CB56173 - OIL SEAL
PIN HOLDER 7 HOLES (10X)
4CB57776
4CB57776 - PIN HOLDER 7 HOLES (10X)
Set of 10 pcs
STRIPPING PIN STEEL 10/4 MM
4CB58662
4CB58662 - STRIPPING PIN STEEL 10/4 MM
Alumunium version is 4CB07483
PIN HOLDER 9 HOLES (10X)
4CB58771
4CB58771 - PIN HOLDER 9 HOLES (10X)
Set of 10 pcs
PIN HOLDER 12 HOLES (10X)
4CB58772
4CB58772 - PIN HOLDER 12 HOLES (10X)
PALLET
4CB62133
4CB62133 - PALLET
PULSE GENERATOR
4CB68371
4CB68371 - PULSE GENERATOR
FIXING BAR L 1110 MM
4CB71517
4CB71517 - FIXING BAR L 1110 MM
BRUSHLESS MOTOR
4CB71526
4CB71526 - BRUSHLESS MOTOR
